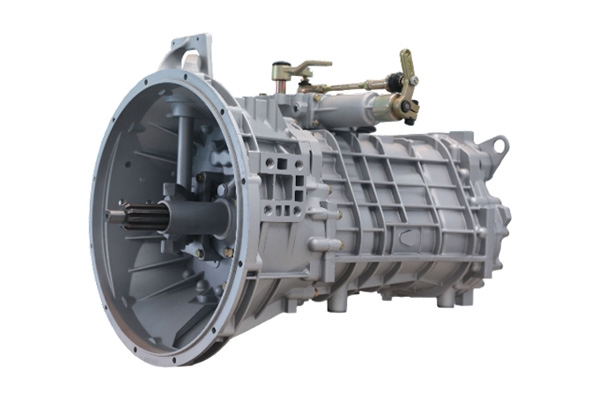

HW13709XST

9-speed transmissionHW13709XST

1. Main gearbox with all helical gears, auxiliary gearbox with planetary mechanism - low noise, strong load-bearing capacity;
2. Operation can choose between single H and double H configurations, catering to different driving habits of drivers of various ages;
3. Lubricated by a combination of forced lubrication and gear splash lubrication methods;
4. Can be equipped with rear power take-off, single shaft power take-off, hydraulic retarder;


Main parameters

Transmission model Torque C 1 2 3 4 5 6 7 8
HW13709XST 1400 13.116 8.868 6.538 4.805 3.484 2.545 1.877 1.379 1
HW13709XSTC 1500 9.509 6.429 4.740 3.484 2.526 1.845 1.360 1 0.725
HW13709XSTC2 1500 11.000  6.630  4.810  3.480  2.660  1.900  1.380  1 0.76
#
