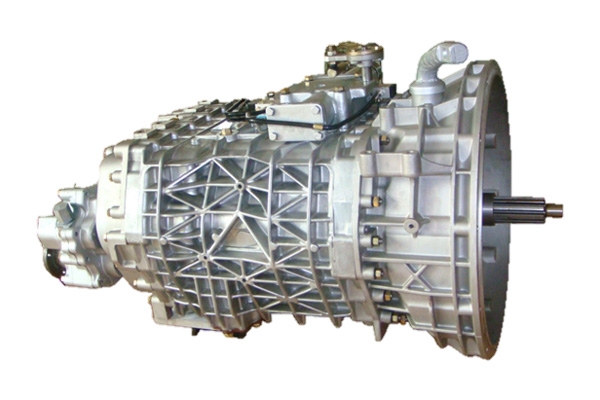

HW15710/HW19710

10-speed transmissionHW15710/HW19710

1. Main gearbox with dual intermediate shaft mechanism, auxiliary gearbox with planetary mechanism, 5X2 combination;
2. Long-distance single H operation, optional single lever/dual lever operation, can be equipped with shift assistant;
3. Combined forced lubrication and gear splash lubrication;
4. Multiple gears, small gear ratio differences, easy shifting, strong fuel economy;
5. Rich options available, can be equipped with rear power take-off, hydraulic retarder, suitable for a wide range of vehicle models;
6. Long-life oil can be used, with initial and regular maintenance intervals of 100,000 kilometers.


Main parameters

Transmission model Torque (Nm) Speed ratio range
HW15710 1500 14.28-1
HW15710C 1650 10.73-0.75
HW15710C2 1650 12.374-0.74
HW19710 1900 14.28-1
HW19710C 2100 10.73-0.75
HW19710C2 2100 12.374-0.74
#
